Floor Mat: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly. Refer to FRONT SEAT .
  2. Remove the rear seat cushion assembly. Refer to REAR SEAT .
  3. Remove the console box assembly. Refer to REMOVAL , Console Box.
  4. Remove the console front side cover. Refer to CONSOLE FRONT COVER , REMOVAL, Center Console.
  5. Remove the lower inner trim. Refer to REMOVAL , Lower Inner Trim.
  6. Take out the floor mat from the vehicle.
  1. Remove the clips from the floor mat.
  2. Remove the mat hook on both sides.
  3. Take out the floor mat after folding down.

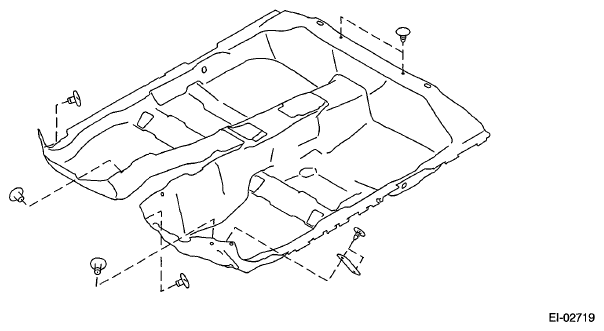

Fig 1: Identifying Floor Mat With Mat Hook And Clips
G06654211Courtesy of SUBARU OF AMERICA, INC.
