Wiper Blade: Assembly: Rear

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Wiper Stoppers

Courtesy of SUBARU OF AMERICA, INC.

Insert the wiper rubber into claw (B).

Fig 2: Inserting Wiper Rubber Into Claw
Courtesy of SUBARU OF AMERICA, INC.

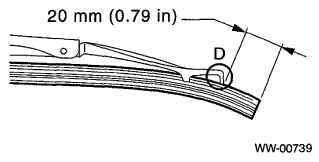

Insert the wiper rubber until its top end protrudes approx. 20 mm (0.79 in) from stopper (D).

Fig 3: Identifying Distance Between Stopper And Wiper Rubber Top End
Courtesy of SUBARU OF AMERICA, INC.
Insert the wiper rubber into claw (A).

Fig 4: Inserting Wiper Rubber Into Claw

Courtesy of SUBARU OF AMERICA, INC.
