Rear Wiper Motor: Installation

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install each part in the reverse order of removal.
Make sure that the mark on the pivot cap faces up, as shown in the figure.

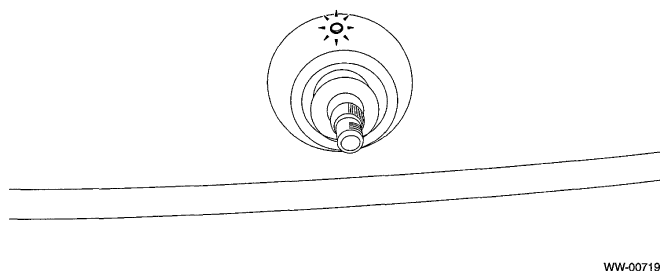

Fig 1: Identifying Mark On Pivot Cap

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "General Description". Refer to REAR WIPER .
