Front Wiper Arm: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Follow the steps below when standing up the wiper arm. Not following the steps may cause contacting of wiper arms and damages of wiper arms.
  1. Stand up the driver's side wiper arm.
  2. Stand up the passenger's side wiper arm.

Fold the wiper arms in the reverse order.
  1. Open the front hood.
  2. Remove the front wiper arm assembly.
  1. Remove the cap.
  2. Remove the nuts, and remove the front wiper arm assembly.

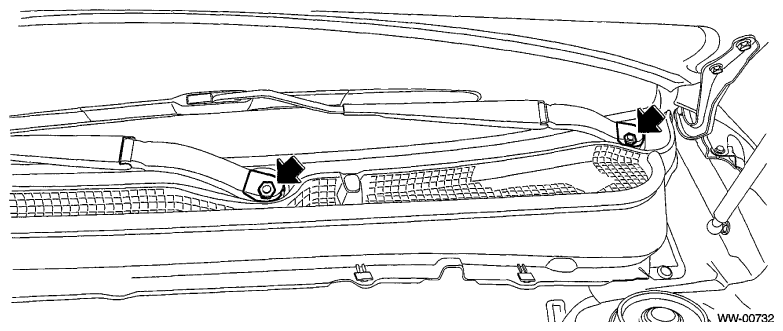

Fig 1: Locating Front Wiper Arm Assembly Nuts
G06653539Courtesy of SUBARU OF AMERICA, INC.
