Front Washer Nozzle: Adjustment

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the wiper switch to OFF position.
  2. While the vehicle is at a standstill, insert the washer nozzle adjustment tool (a) into upper side (b) and lower side (c) of the washer nozzle to perform necessary adjustment.

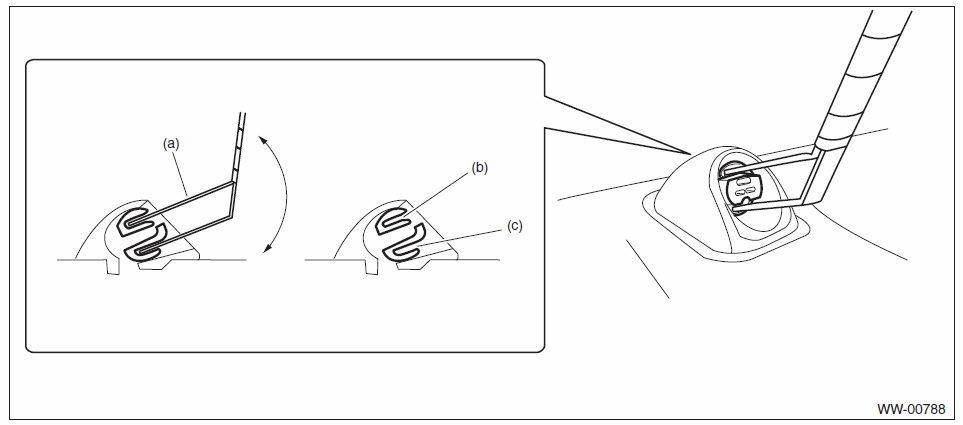

    Fig 1: Inserting The Washer Nozzle Adjustment Tool
    G00525741Courtesy of SUBARU OF AMERICA, INC.
    CAUTION: Washer nozzle is made of resin. If precision screwdriver (A) or equivalent is inserted into discharge port for adjustment, the discharge port can be deformed, and washer fluid cannot be sprayed.

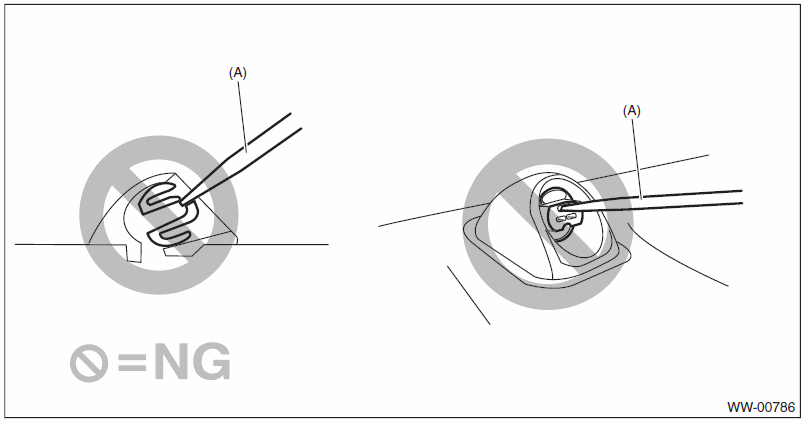

    Fig 2: Inserting Screwdriver Into Discharge Port
    G00525742Courtesy of SUBARU OF AMERICA, INC.
  3. Adjust the injection position of the washer fluid as shown in the figure.

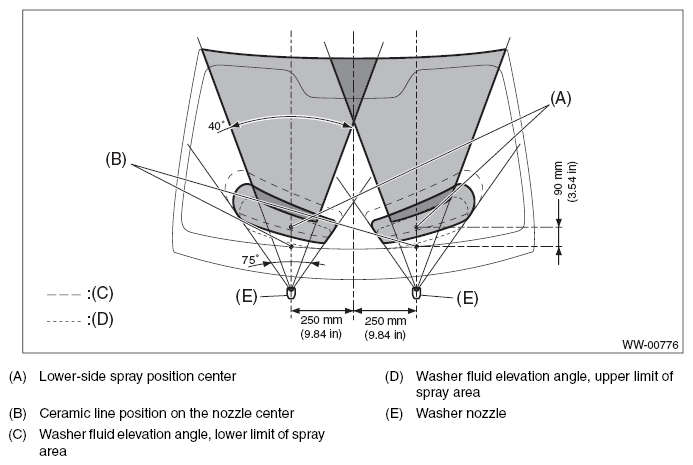

Fig 3: Identifying Washer Injection Adjustent Dimension
G07916186Courtesy of SUBARU OF AMERICA, INC.
