Trunk Room Light: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the trunk room light
    1. Disconnect the connector.

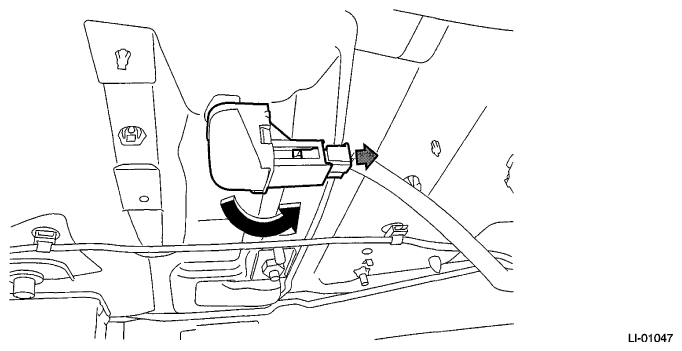

    2. Turn the trunk room light counterclockwise to 60° and remove the light.
      Fig 1: Turning Trunk Room Light
      G06653499Courtesy of SUBARU OF AMERICA, INC.

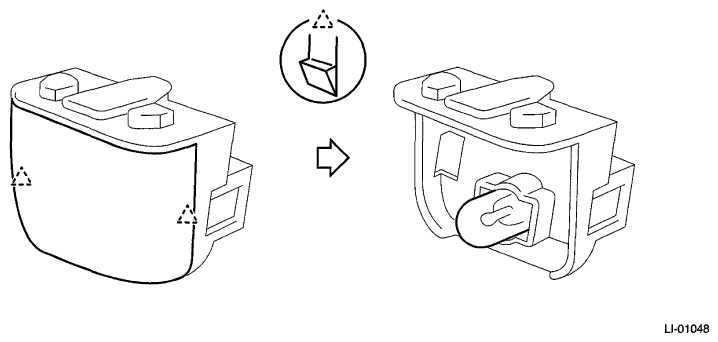

  3. Release the claws, and detach the trunk room light cover and bulb.
    Fig 2: Identifying Trunk Room Light Cover Claws
    G06653500Courtesy of SUBARU OF AMERICA, INC.
