Side Turn Signal Light Assembly: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the mirror. Refer to OUTER MIRROR .
  3. Remove the scalp cap. Refer to SCALP CAP .
  4. Remove the side turn signal light assembly.
    1. Remove the screws and pull out the side turn signal light assembly.
    2. Disconnect the connector and remove the side turn signal light assembly.

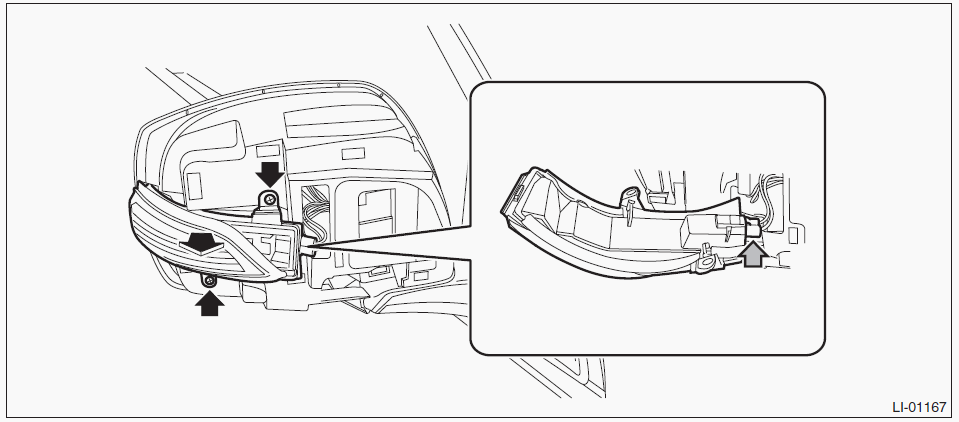

      Fig 1: Disconnecting Side Turn Signal Light Assembly Connector
      G00525673Courtesy of SUBARU OF AMERICA, INC.
