Room Light Switch
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the room light.

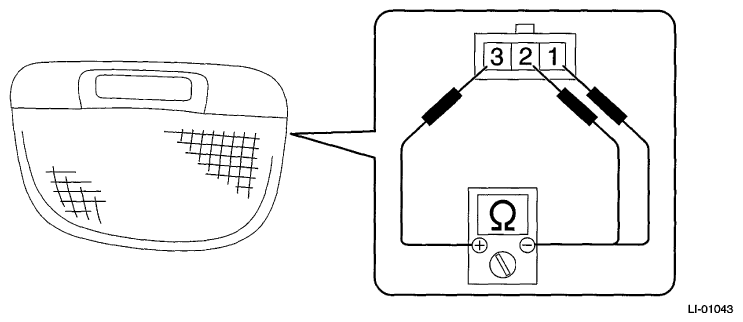

- Measure the resistance between room light switch terminals.
Preparation tool: Circuit tester
Terminal No. Inspection Conditions Specification - Switch OFF 1 MΩ or more 1 - 3 Switch ON Less than 1 Ω 2 - 3 Switch door Less than 1 Ω - Apply battery voltage to check the lighting condition of room light.
Terminal No. Inspection Conditions Specification 3 (+) - 1, 2 (-) Switch OFF Light OFF Switch ON Light ON Switch door Light ON - Replace the spot map light switch if the inspection result is not within the standard value.
