Relay and Fuse: Location
WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

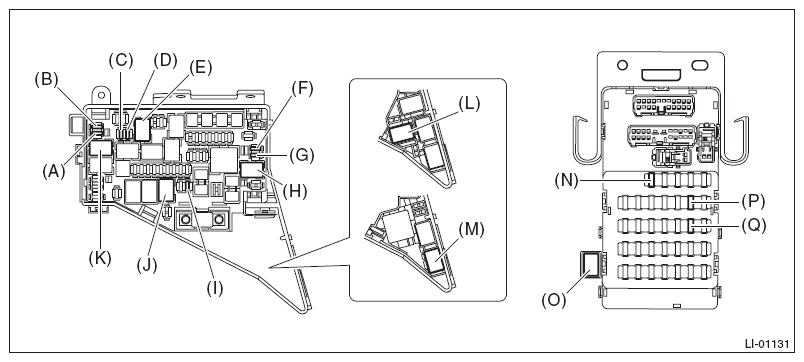

| Main fuse box | Fuse 15A (front combination light RH) | (A) |
| Fuse 15A (front combination light LH) | (B) | |
| Fuse 10A (front combination light LH) | (C) | |
| Fuse 10A (front combination light RH) | (D) | |
| Headlight relay (Hi) | (E) | |
| Fuse 10A (front fog light LH) | (F) | |
| Fuse 10A (front fog light RH) | (G) | |
| Front fog light relay | (H) | |
| Fuse 10A (rear combination light) | (I) | |
| Tail & Illumination relay | (J) | |
| Headlight relay (Lo) | (K) | |
| A/C relay holder (in main fuse box) | Daytime running light relay (H4 model) | (L) |
| Daytime running light relay (H6 model) | (M) | |
| Relay & fuse box | Fuse 15A (trailer connector) | (N) |
| Back-up light relay | (O) | |
| Fuse 7.5A (turn signal & hazard unit) | (P) | |
| Fuse 7.5A (inhibitor switch, back-up light relay) | (Q) |
NOTE:
For other related fuses, refer to the wiring diagram. Refer to SYSTEM WIRING DIAGRAMS
or SYSTEM WIRING DIAGRAMS
.
