Outback Model

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the rear gate trim. Refer to REAR GATE TRIM .
  3. Remove the rear gate garnish. Refer to REAR GATE GARNISH .
  4. Release the clips and claws, then detach the rear finisher light side cover.

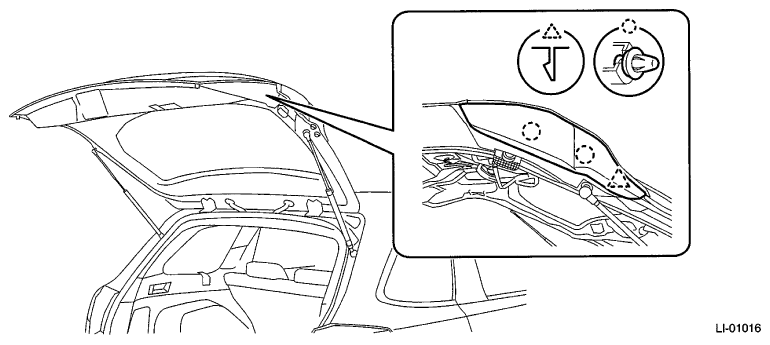

    Fig 1: Identifying Rear Finisher Light Side Cover Clips And Claws
    G06653634Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the rear finisher light assembly.
    1. Disconnect the connector.
    2. Remove the nuts and release the pin, then remove the rear finisher light assembly.

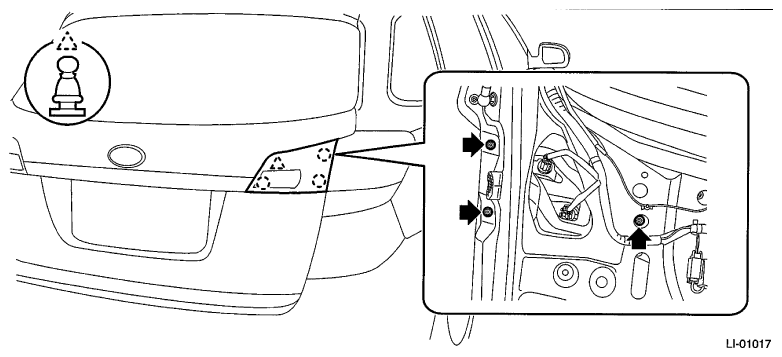

      Fig 2: Locating Rear Finisher Light Assembly Nuts And Pin
      G06653478Courtesy of SUBARU OF AMERICA, INC.
