Front Turn Signal Light Bulb: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the air intake duct. (When removing the front turn signal light bulb RH)
    Fig 1: Locating Air Intake Duct Clips
    G06653429Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the fender cover assembly UPR.
    1. Remove the clip.
    2. Release the claws of the fender cover assembly UPR by pulling it forward and remove the fender cover.
      Fig 2: Identifying Fender Cover Assembly UPR Claws And Clip
      G06653163Courtesy of SUBARU OF AMERICA, INC.

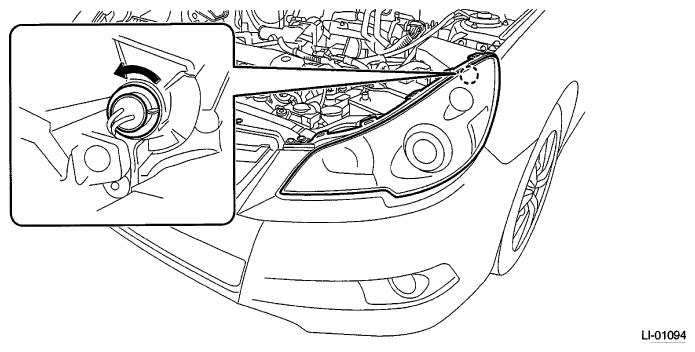

  4. Remove the bulb socket and turn signal light bulb.
    Fig 3: Turning Signal Light Bulb
    G06653446Courtesy of SUBARU OF AMERICA, INC.
