Front Fog Light Bulb: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and turn over the front end of front mud guard.
    Fig 1: Locating Front Mud Guard Clips
    G06653452Courtesy of SUBARU OF AMERICA, INC.
  3. From the bottom of bumper face, remove the front fog light bulb.
    1. Disconnect the connector.
    2. Remove the bulb.

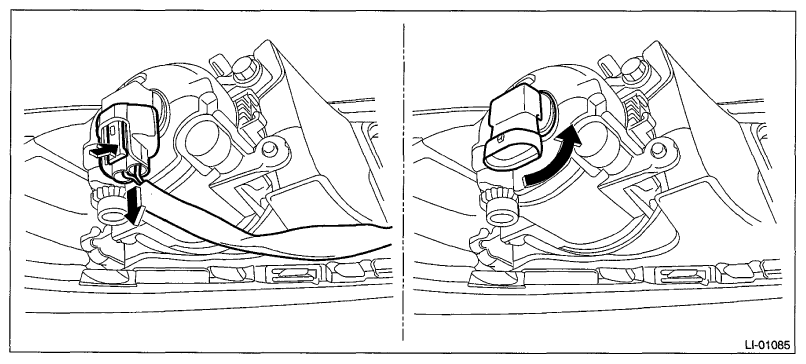

      Fig 2: Removing Front Fog Light Bulb And Connector
      G06653458Courtesy of SUBARU OF AMERICA, INC.
