Door Switch: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the door switch.
    1. Remove the screws, and pull out the door switch.
    2. Disconnect the connector and remove the door switch.

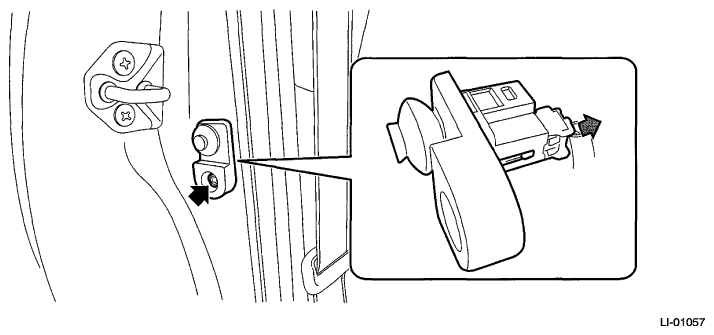

      Fig 1: Disconnecting Door Switch Connector
      G06653509Courtesy of SUBARU OF AMERICA, INC.
