Door Step Light: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the door step light.
    CAUTION: Be careful not to damage light and door trim.
    1. Insert a flat tip screwdriver into the slit of the door step light to release the claw.
    2. Disconnect the connector and remove the door step light.

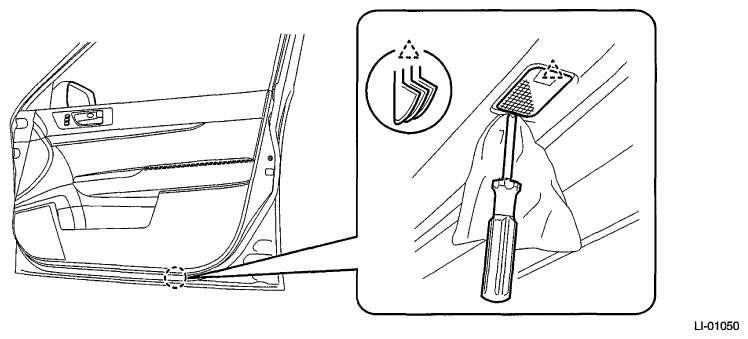

      Fig 1: Releasing Door Step Light Claw Using Flat Tip Screwdriver
      G06653502Courtesy of SUBARU OF AMERICA, INC.
