Day Time Running Resistor: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper face assembly. Refer to FRONT BUMPER .
  2. Remove the daytime running resistor.
    1. Disconnect the connector.
    2. Remove the bolt, and remove the daytime running resistor.

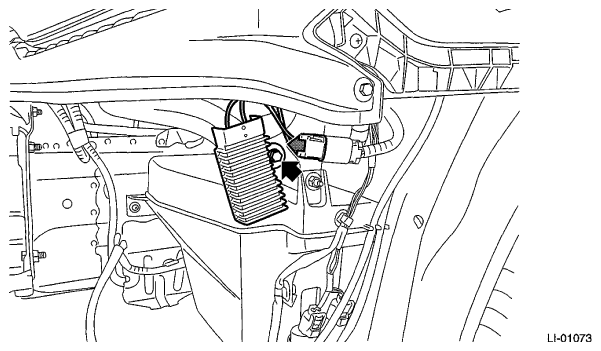

      Fig 1: Locating Daytime Running Resistor Bolt
      G06653507Courtesy of SUBARU OF AMERICA, INC.
