Scavenge Pump: Removal

CAUTION: If engine oil is spilt onto the exhaust pipe, wipe it off with cloth to avoid emission of smoke or causing a fire.
NOTE: Turbo model is equipped with scavenge pump.
  1. Lift up the vehicle.
  2. Remove the under cover. Refer to FRONT UNDER COVER .
  3. Remove the union bolt (A) that holds the oil pipe (C) to the scavenge pump (E).
  4. Remove the bolt (D) that holds the scavenge pump (E) to the cylinder head, and remove the scavenge pump using a flat tip screwdriver.
    CAUTION: Be careful not to damage the mating surface of the cylinder head and scavenge pump.

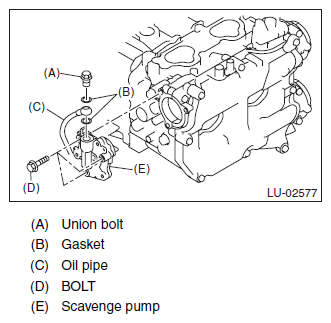

    Fig 1: Identifying Scavenge Pump, Union Bolt, Gasket And Oil Pipe
    G07909982Courtesy of SUBARU OF AMERICA, INC.
