Fuel Tank Pressure Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

7.35 N.m (0.7 kgf-m, 5.4 ft-lb)

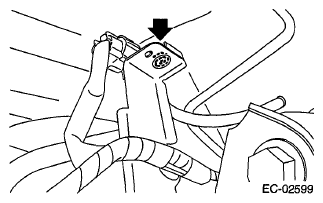

Fig 1: Locating Fuel Tank Pressure Sensor Bracket
G06650568Courtesy of SUBARU OF AMERICA, INC.
