Rear Bumper

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Sedan model

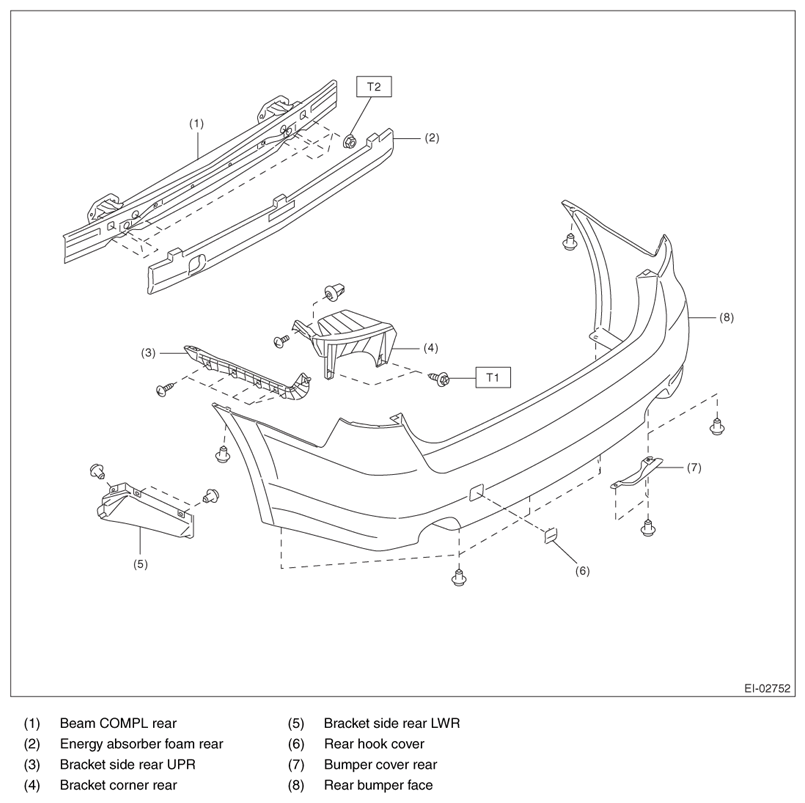

Fig 1: Rear Bumper Replacement Components With Torque Specifications - Sedan Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 45 (4.59, 33.2)
OUTBACK model

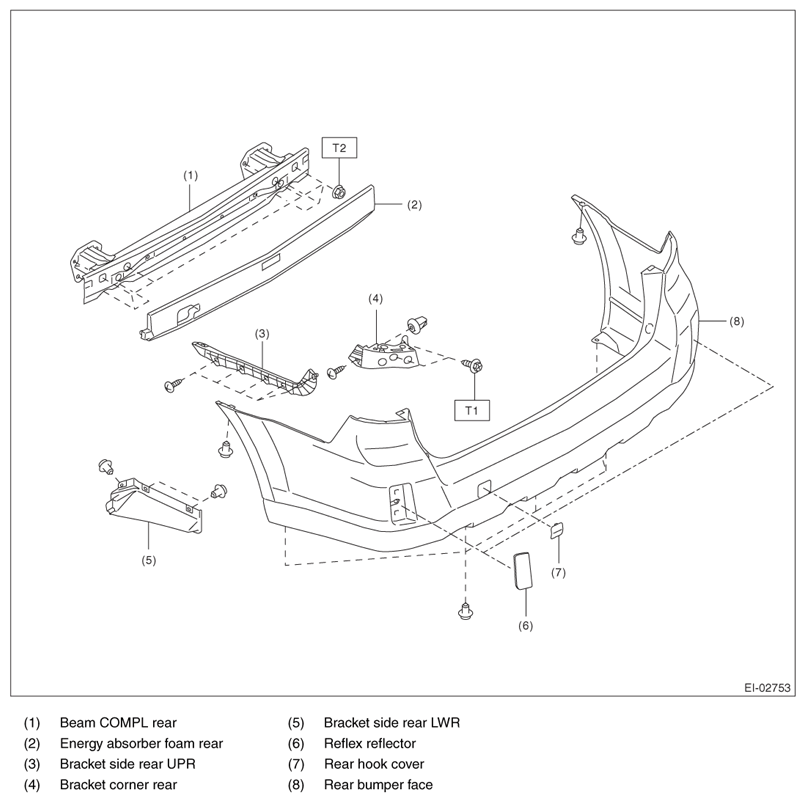

Fig 2: Rear Bumper Replacement Components With Torque Specifications - Outback Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 45 (4.59, 33.2)
