Front Bumper: Installation

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Install each part in the reverse order of removal.
Make sure that the bumper flanges are secured to the bracket side front UPR.

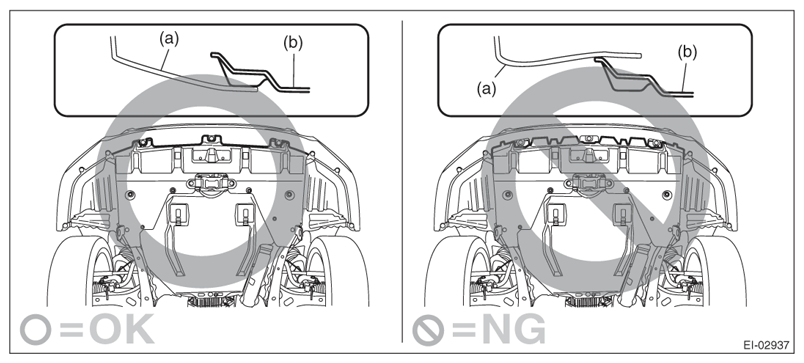

CAUTION: Install the bumper face so that the under cover front end (b) comes inside the front bumper face (a).

Fig 1: Identifying Proper And Improper Bumper Installation Position

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Refer to "COMPONENT" of "General Description". Refer to FRONT BUMPER , COMPONENT, General Description.
