High Beam

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Because the halogen bulb operates at a high temperature, dirt and oil on the bulb surface reduces the bulb's service life. Hold the flange portion when replacing the bulb. Never touch the glass portion.
  • Do not leave the headlight without a bulb for a long time. Dust, moisture, etc. entering the headlight may affect its performance.
  1. Disconnect the ground cable from battery.
  2. Remove the clips and remove the air intake duct. (When removing the headlight high beam bulb RH)
    Fig 1: Locating Air Intake Duct Clips
    G06653429Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector and remove the headlight high beam bulb.

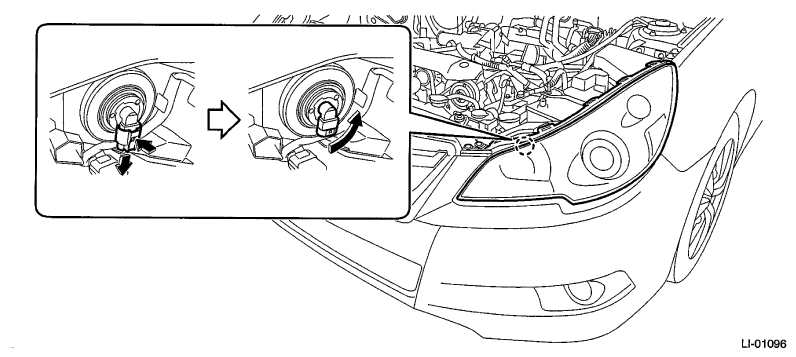

    Fig 2: Disconnecting Headlight High Beam Bulb And Connector
    G06653438Courtesy of SUBARU OF AMERICA, INC.
