Front Sub Sensor LH And Front Door Impact Sensor

  1. How to disconnect:
    CAUTION: When pulling the slide lock or disconnecting connector, be sure to hold the connector, not the harness.

    Holding outer part (A), pull it in the direction of arrow.

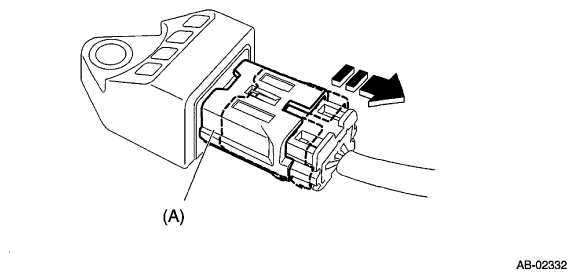

    Fig 1: Pulling Front Sub Sensor LH And Front Door Impact Sensor Connector
    G06653088Courtesy of SUBARU OF AMERICA, INC.
  2. How to connect:
CAUTION:
  • Do not touch the outer side section or else the outer side (A) will move back.
  • Be sure to insert the connector in until it is locked. Then pull it gently to make sure that it is locked.

Holding the connector, push it in securely until a clicking sound is heard.

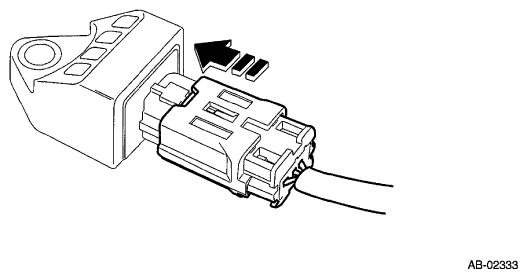

Fig 2: Pushing In Front Sub Sensor LH And Front Door Impact Sensor Connector
G06653089Courtesy of SUBARU OF AMERICA, INC.
