Rear Seat: Assembly

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not reuse hog rings.
Secure the hog ring using hog ring pliers.
Install the hog rings to the specified points securely and make sure that no wrinkle or twisting on backrest cover.

Assemble the seat cover in the same manner as the front seat. Refer to ASSEMBLY
Make sure that all hog rings (A) are attached securely.

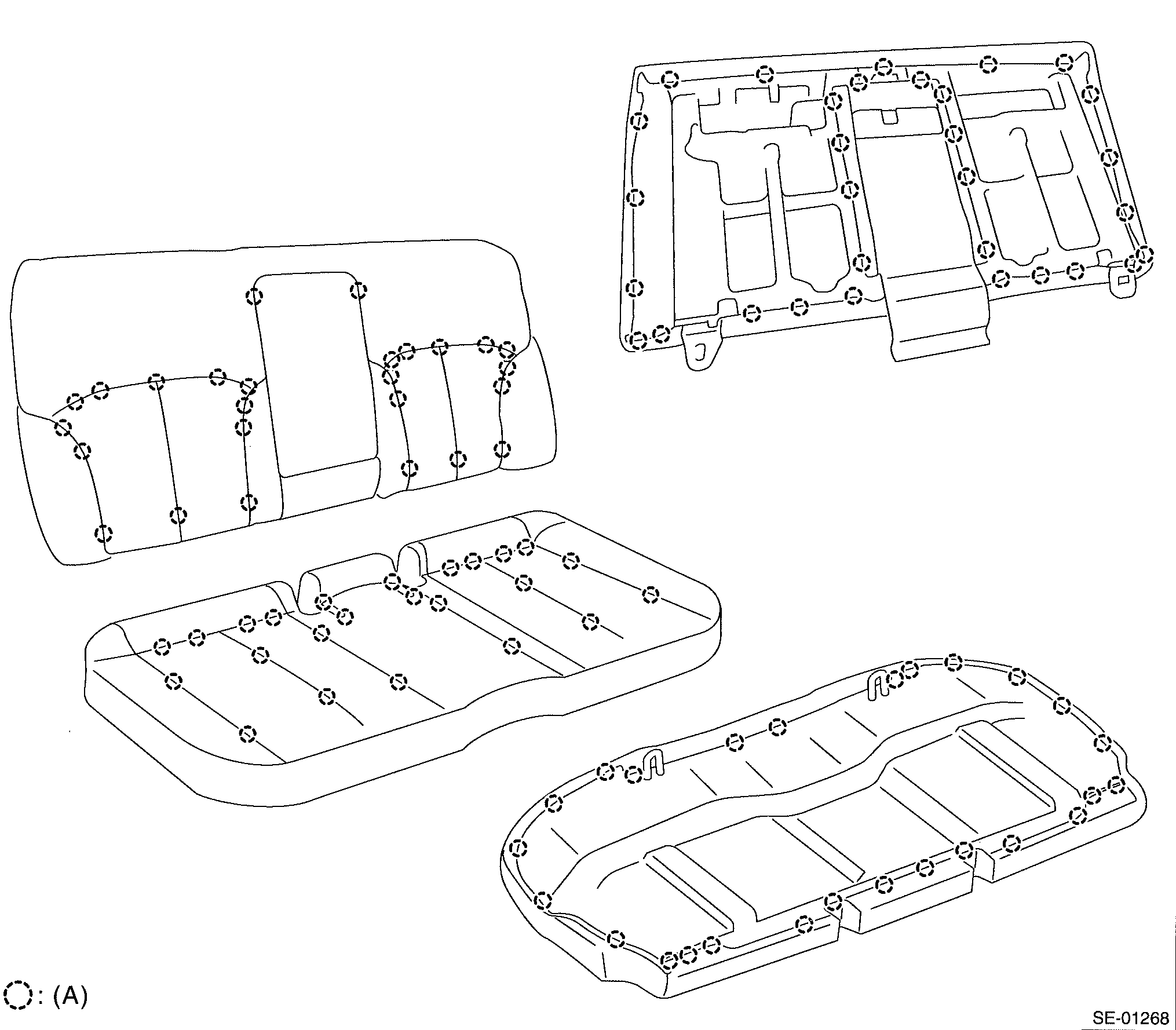

- Sedan model

  Fig 1: Identifying Hog Rings
  Courtesy of SUBARU OF AMERICA, INC.

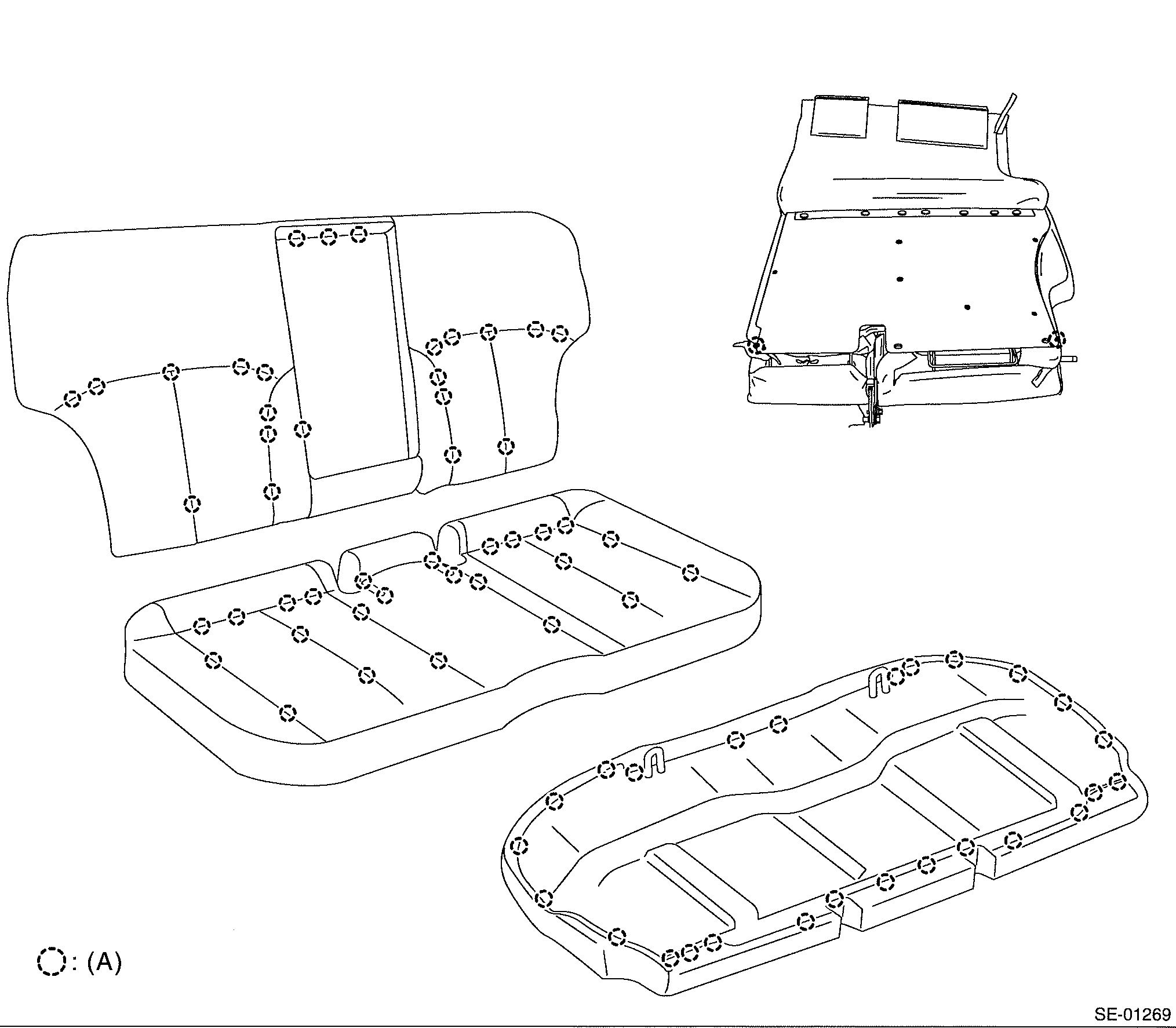

- OUTBACK model

  Fig 2: Identifying Hog Rings
  Courtesy of SUBARU OF AMERICA, INC.
Assemble each part in the reverse order of disassembly.
NOTE:
- Do not contaminate or damage the cover.
- While installing the hog rings, prevent the seat from getting wrinkled.
Tightening torque:

Refer to " COMPONENT " of "General Description".

Sedan model: Refer to , REAR SEAT (SEDAN MODEL) , COMPONENT, General Description. OUTBACK model Refer to , REAR SEAT (OUTBACK MODEL) , COMPONENT, General Description.
Before installation, check the following items.
- No break and fray on seat cover.
- No fray or deformation on each wire cable.
Install each part in the reverse order of removal.
