Stop Light Switch: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the clips and data link connector, and remove the instrument panel lower cover under.

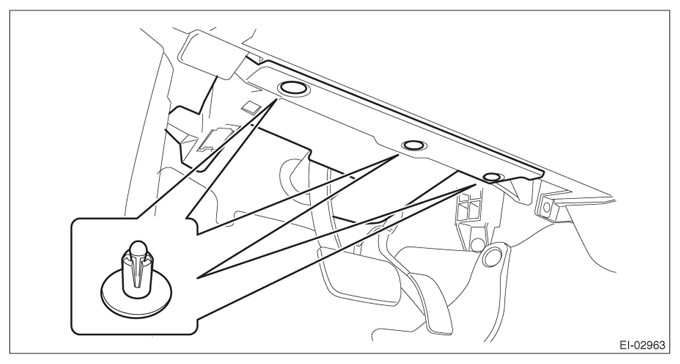

    Fig 1: Identifying Instrument Panel Lower Cover Under And Clips
    G07915689Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the stop light switch.
    1. Disconnect the stop light switch connector (a).
    2. Remove the nut (b), and remove the stop light switch.
      Fig 2: Identifying Stop Light Switch Connector And Nut
      G07915690Courtesy of SUBARU OF AMERICA, INC.
