Sunroof Assembly: Removal

CAUTION: When removing the clip, use great care not to damage the roof trim.

Remove the glass lid.
1. Completely close the glass lid, and then open the sunshade.
2. Disconnect the claws and then remove the lid cover.

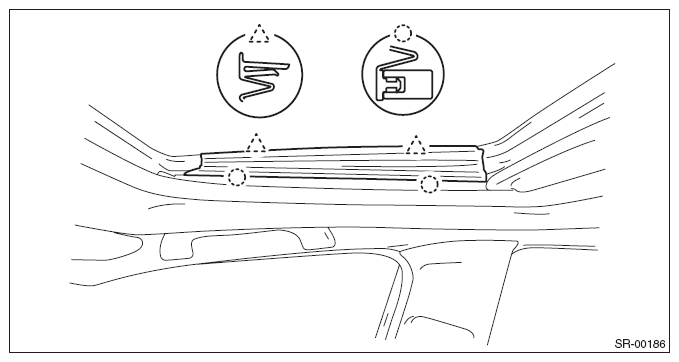

  Fig 1: Identifying Lid Cover Claws
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts, then remove the glass lid.
  CAUTION: Be careful not to damage the glass lid.

  Fig 2: Locating Glass Lid Bolts
  Courtesy of SUBARU OF AMERICA, INC.
Remove the roof trim. Refer to ROOF TRIM .
Disconnect the sunroof motor connector.
Remove the frame assembly.
1. Remove the drain tube.

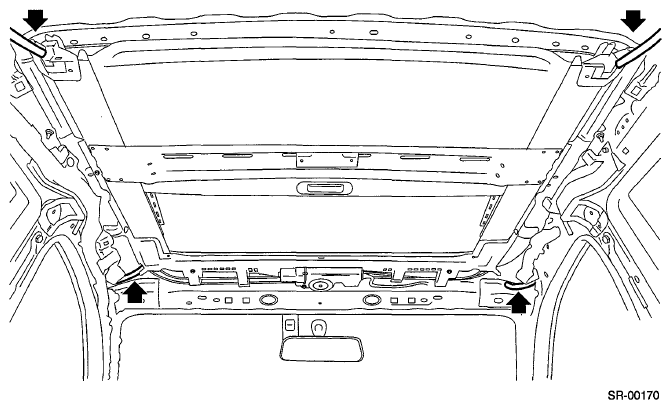

  Fig 3: Locating Frame Assembly Drain Tubes
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the bolts and then remove the sunroof bracket.

  Fig 4: Locating Sunroof Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts, then remove the frame assembly.

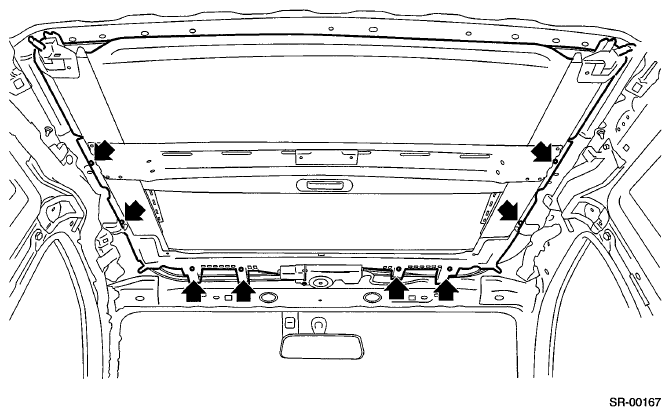

  Fig 5: Locating Frame Assembly Bolts
