Sunroof Assembly: Disassembly

Remove the bolts and then remove the sunroof motor.

Fig 1: Locating Sunroof Motor Bolts
Courtesy of SUBARU OF AMERICA, INC.

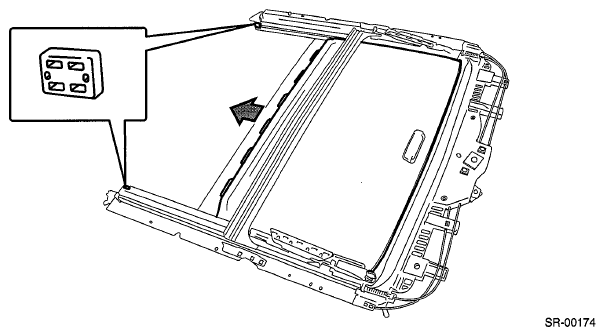

Remove the stopper rubber and pull out the sunshade from sunroof frame.

Fig 2: Identifying Stopper Rubber
Courtesy of SUBARU OF AMERICA, INC.
Remove the sunroof cable assembly.
1. Remove the screw and remove the drain holder.

  Fig 3: Identifying Sunroof Cable Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the screw and pull out the sunroof cable assembly from the frame roof assembly.

  Fig 4: Locating Sunroof Cable Assembly Screw
  Courtesy of SUBARU OF AMERICA, INC.
