Select Cable: Installation

Install the select cable to plate assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 1: Identifying Plate Assembly Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to transmission.
Tightening torque:

T:25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 2: Identifying Select Cable And Plate ASSY
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

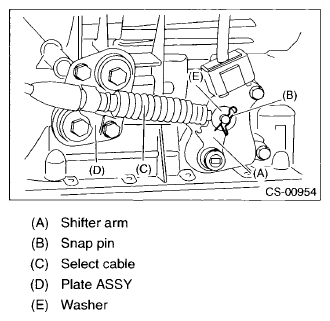

Fig 3: Identifying Shifter Arm, Snap Pin, Select Cable, Plate ASSY And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install new clamp paying attention to the installing direction.

Fig 4: Identifying Clamp Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Insert the tip of inner cable into connector hole of select lever, and fix the cable to bracket.

Fig 5: Inserting Tip Of Inner Cable Into Connector Hole Of Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Shift the select lever to the "N" range, and then adjust the select cable position. < Ref. to ADJUSTMENT , Select Cable. >
Install the heat shield cover. < Ref. to INSTALLATION , Heat Shield Cover. >
Install the front, center and rear exhaust pipe. < Ref. to INSTALLATION , Front Exhaust Pipe. > < Ref. to INSTALLATION , Center Exhaust Pipe. > < Ref. to INSTALLATION , Rear Exhaust Pipe. >
