Fuel Pump Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G07662825Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the fuel pump relay from the relay block on the back side of the glove box.

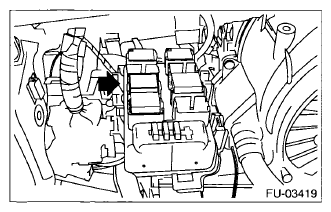

    Fig 2: Locating Fuel Pump Relay In Relay Block On Back Side Of Glove Box
    G07662826Courtesy of SUBARU OF AMERICA, INC.
