Electronic Throttle Control Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G07662829Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the electronic throttle control relay from the relay block on the back side of the glove box.

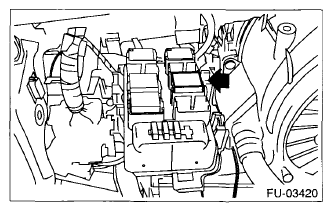

    Fig 2: Locating Electronic Throttle Control Relay In Relay Block On Back Side Of Glove Box
    G07662830Courtesy of SUBARU OF AMERICA, INC.
