Engine Intake System - Intake (H4DOTC): Intercooler: Installation

Install in the reverse order of removal.

NOTE:

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

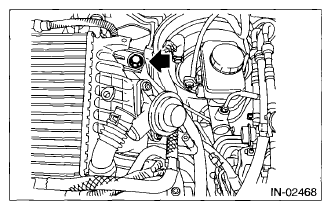

Fig 1: Locating Brake Booster Vacuum Hose Clip Bolts

Courtesy of SUBARU OF AMERICA, INC.

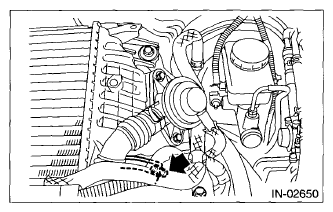

Fig 2: Locating Bolts Which Secure Intercooler To Intercooler Stay

Courtesy of SUBARU OF AMERICA, INC.

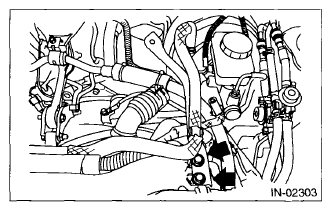

Fig 3: Locating Bolts Which Hold Intercooler To Turbocharger

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 4: Locating Clamp Which Holds Intake Duct To Intercooler

Courtesy of SUBARU OF AMERICA, INC.
