AT Shift Lock Solenoid and "P" Range Switch: Installation

Install in the reverse order of removal.

NOTE:

Refer to "COMPONENT" for each tightening torque. < Ref. to COMPONENT , General Description. >
When installing the plate guide COMPL, set the select lever to the "D" range (normal mode position), and be careful for the following points.
- Insert protrusion (B) of the plate guide COMPL into the hole on the solenoid unit (A).
- Insert link (D) of the shift lock release into link (C) of the solenoid unit.

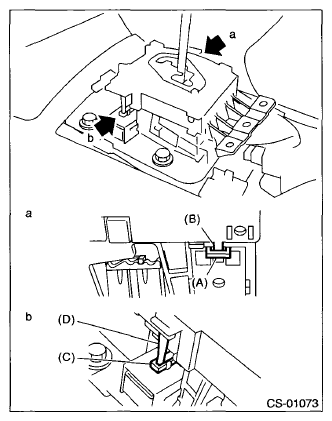

  Fig 1: Identifying Solenoid Unit, Protrusion Of Plate Guide COMPL, Shift Lock Release Link And Solenoid Unit Link
  Courtesy of SUBARU OF AMERICA, INC.
Connect the switch and solenoid unit terminals to the connector.

Fig 2: Identifying Connector Solenoid Terminals
Courtesy of SUBARU OF AMERICA, INC.
