Air Intake Duct: Removal

  1. Remove the clip which secures air intake duct (rear), and remove the air intake duct (rear).

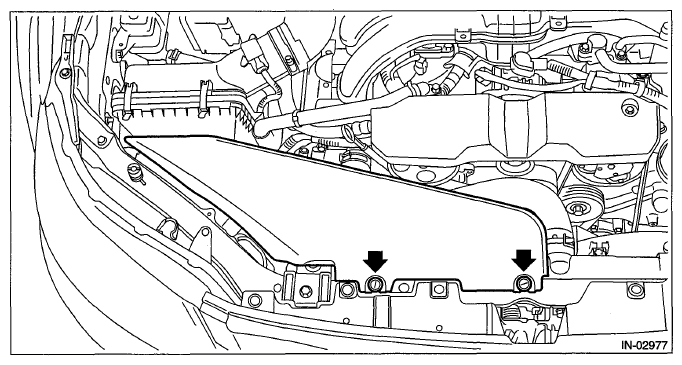

    Fig 1: Locating Air Intake Duct
    G07664987Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the clip (A) and four claws and then remove the air intake duct (front).
    Fig 2: Locating Air Intake Duct Clips And Claws
    G07664988Courtesy of SUBARU OF AMERICA, INC.
