Front Drive Shaft Assembly

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATIONS

Model Type of drive shaft Axle diameterØ mm (in) Axle length mm (in)
All models EBJ + PTJ 26 (1.02) 347 (13.66)

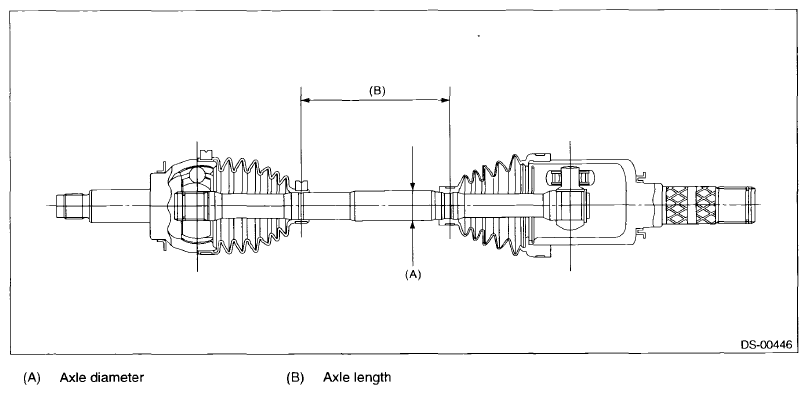

Fig 1: Front Drive Shaft Assembly Axle Diameter And Axle Length
G07680166Courtesy of SUBARU OF AMERICA, INC.
