Power Window System
>>
Wiring Diagram
>>
Without Auto-Reverse Function
Without Auto-Reverse Function

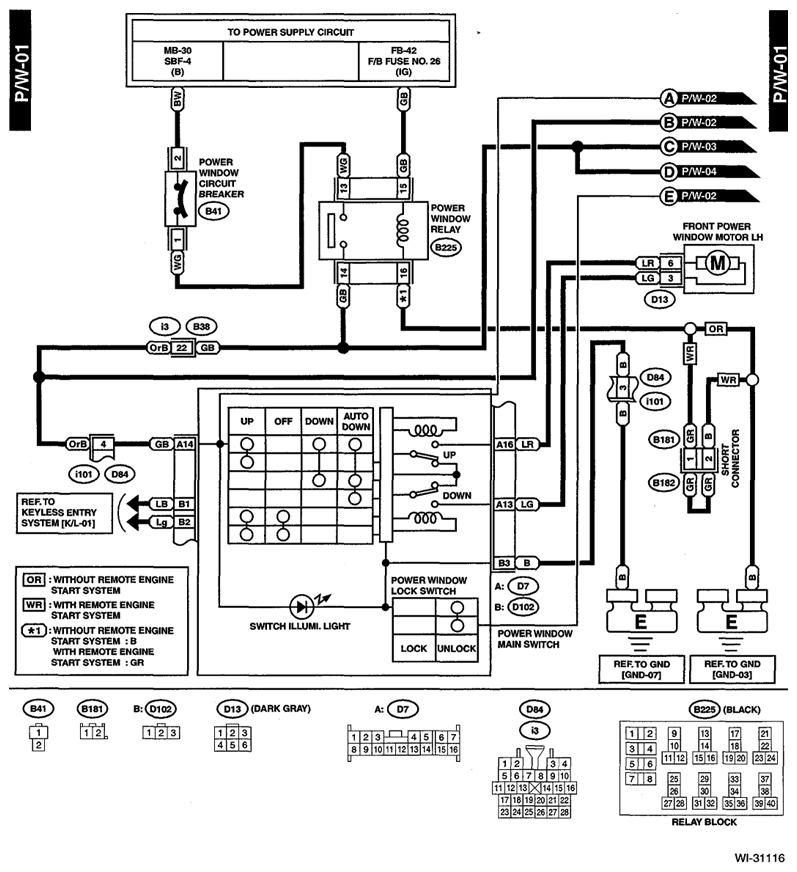

Fig 1: Power Window System (Without Auto-Reverse Function) - Wiring Diagram (P/W-01)
Courtesy of SUBARU OF AMERICA, INC.

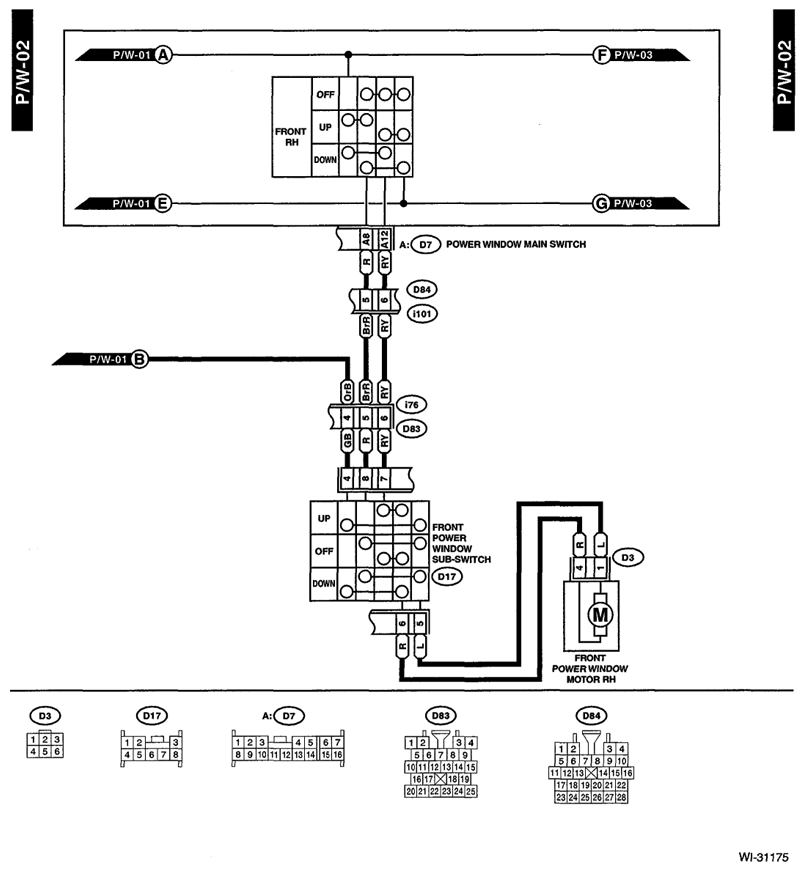

Fig 2: Power Window System (Without Auto-Reverse Function) - Wiring Diagram (P/W-02)
Courtesy of SUBARU OF AMERICA, INC.

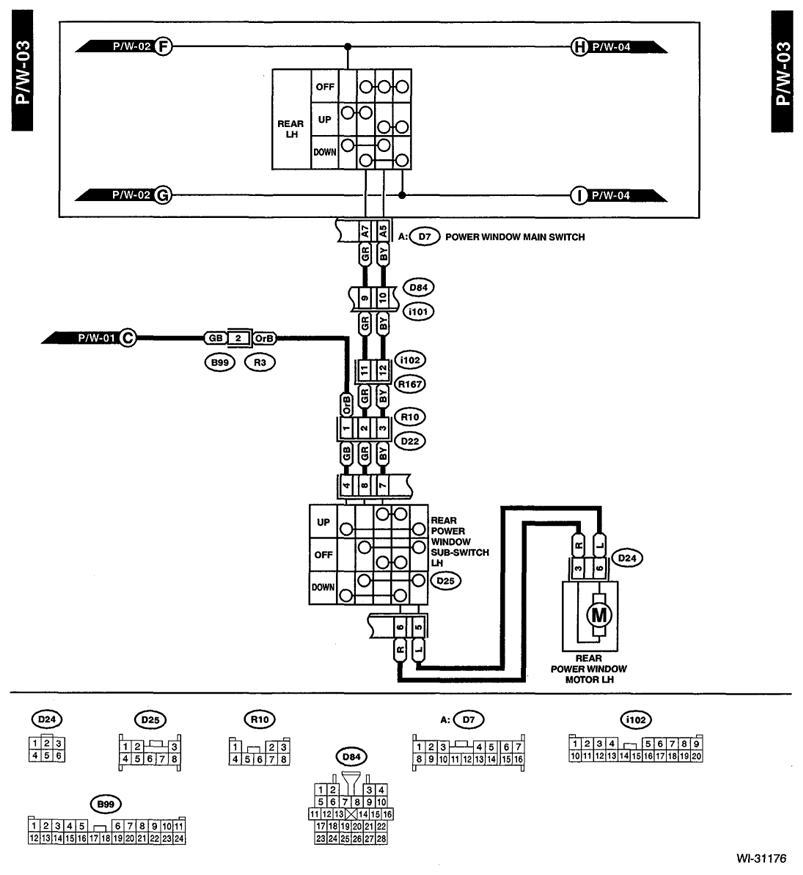

Fig 3: Power Window System (Without Auto-Reverse Function) - Wiring Diagram (P/W-03)
Courtesy of SUBARU OF AMERICA, INC.

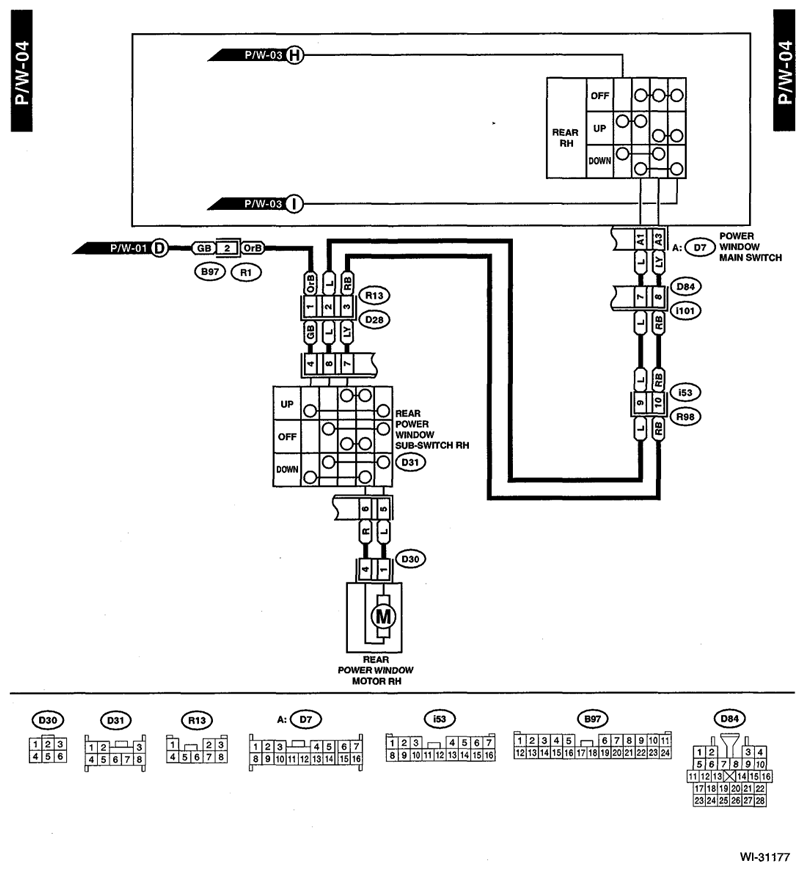

Fig 4: Power Window System (Without Auto-Reverse Function) - Wiring Diagram (P/W-04)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
