Air Cleaner Element: Removal

Disconnect the ground cable from battery.

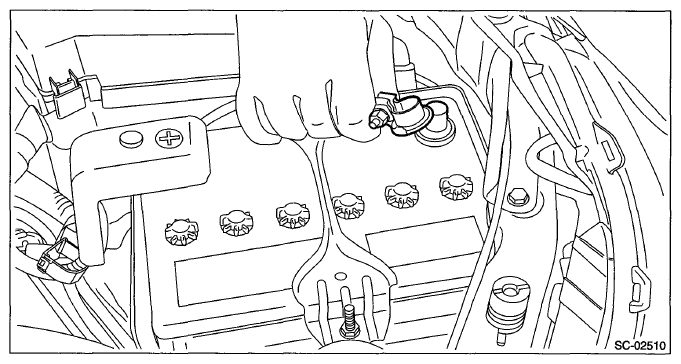

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct (Rear). < Ref. to REMOVAL , Air Intake Duct. >
Disconnect the power steering oil pressure hose (suction hose) from the clip on the side of air cleaner case (rear).

Fig 2: Identifying Power Steering Oil Pressure Hose (Suction Hose)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the clip (B).

Fig 3: Identifying Intake Air Temperature Sensor Connector And Clip
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp (A) which connects the air cleaner case to intake boot.
Remove the clips (B) from the air cleaner case (front).

Fig 4: Identifying Air Cleaner Case Clamp And Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (rear) and air cleaner element.

Fig 5: Removing Air Cleaner Case (Rear) And Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
