Air Cleaner Case: Installation

Install the bolt (A) and nut (B) which secure the air cleaner case (front) to the body.
Tightening torque:

Bolt (A)

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Nut (B)

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 1: Identifying Air Cleaner Case Mounting Bolt And Nut
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case (rear) and air cleaner element.
NOTE: When installing the air cleaner case (rear), align the protrusion of the air cleaner case (rear) to the hole on the air cleaner case (front) to install.

Fig 2: Aligning Protrusion Of Air Cleaner Case (Rear) To Hole On Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Install the clips (B) to the air cleaner case (front), then tighten the clamp (A) that connects the air cleaner case (rear) to the intake boot.
Tightening torque:

Clamp (A)

3 N.m (0.3 kgf-m, 2.2 ft-lb)

Fig 3: Identifying Air Cleaner Case Clamp And Clips
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector (A) to the mass air flow and intake air temperature sensor and secure the harness with clip (B).

Fig 4: Identifying Intake Air Temperature Sensor Clip And Mass Air Flow Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct (rear). < Ref. to INSTALLATION , Air Intake Duct. >
Connect the battery ground terminal.

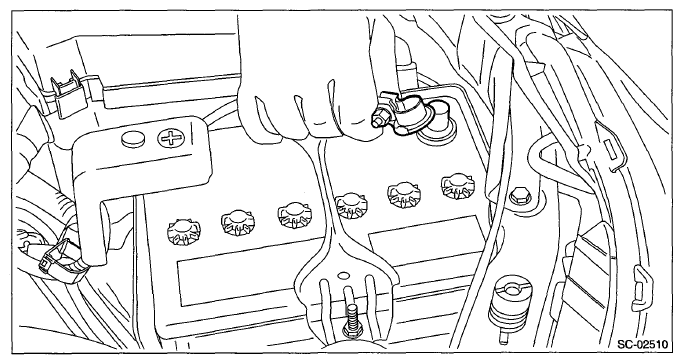

Fig 5: Connecting Battery Ground Terminal
