General Description
>>
Components With Torque Specifications
>>
Rear Axle
Rear Axle

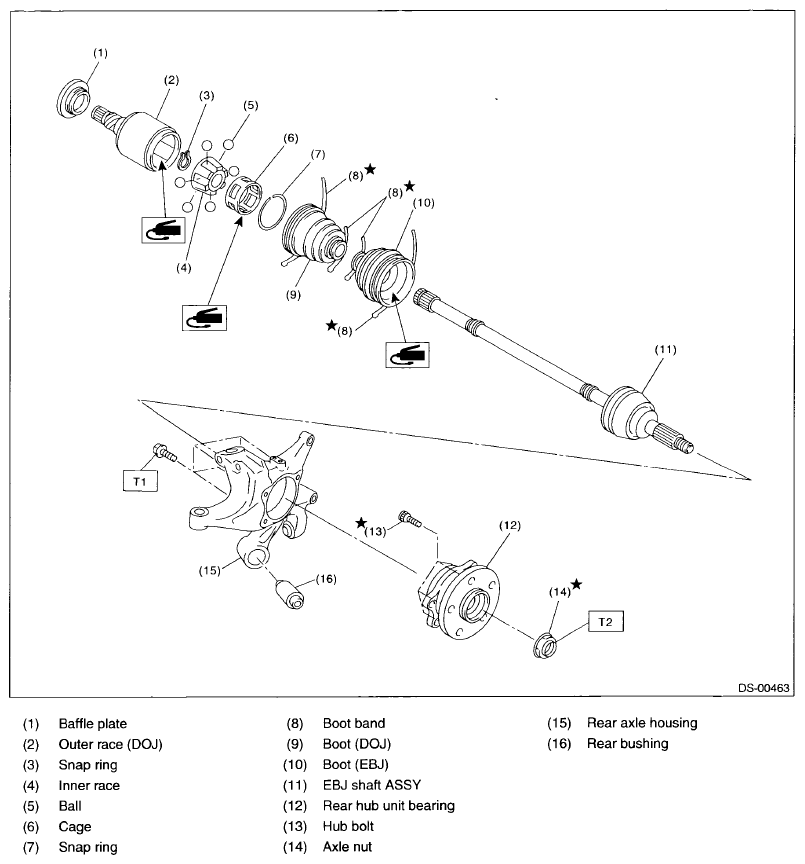

Fig 1: Exploded View Of Rear Axle Shaft Components
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque. N.m (kgf-m, ft-lb)
T1: 65 (6.63, 47.9)
T2: 190 (19.37, 140.1)
Courtesy of SUBARU OF AMERICA, INC.
