Conditions For Abs Sequence Control
Conditions For Abs Sequence Control

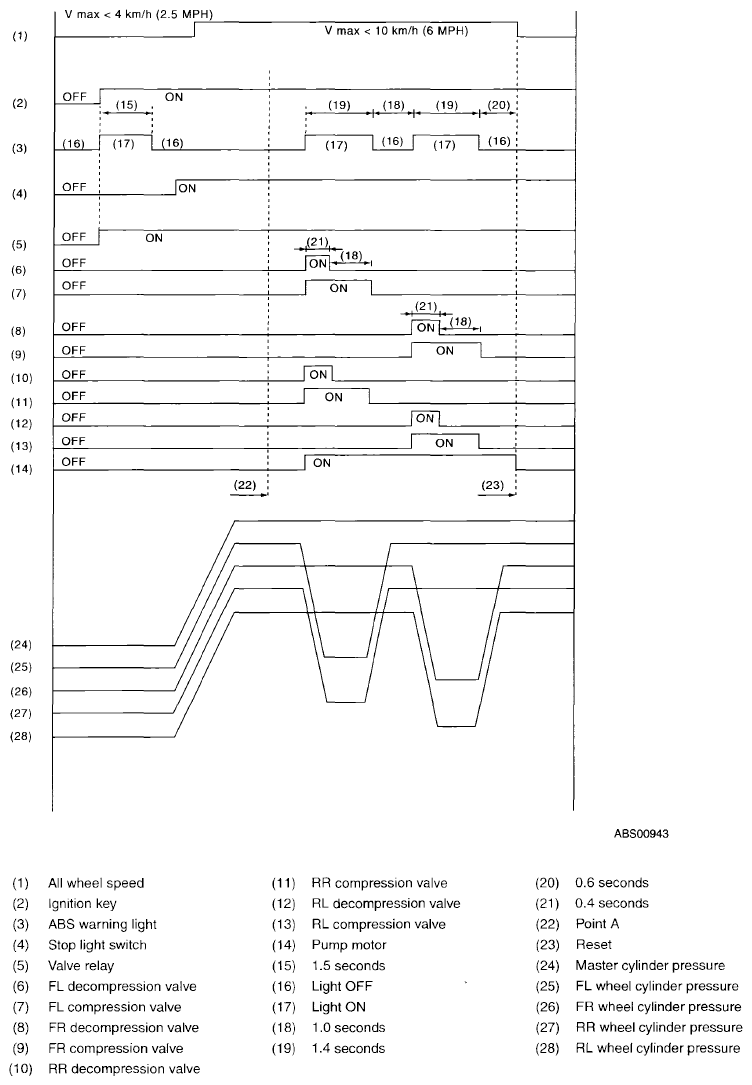

Fig 1: ABS Sequence Control Timing Chart
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
The control operation starts at point A.
Courtesy of SUBARU OF AMERICA, INC.
