Air Intake Duct: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clip which secures air intake duct (rear), and remove the air intake duct (rear).

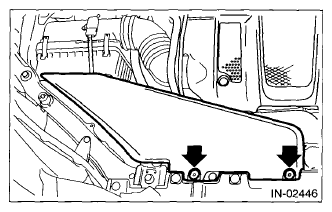

    Fig 1: Locating Clip Which Secures Air Intake Duct (Rear)
    G07680899Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the clip (A) and four claws, and remove the air intake duct (front).

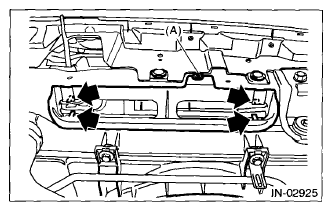

    Fig 2: Locating Clip And Claws Of Air Intake Duct (Front)
    G07680900Courtesy of SUBARU OF AMERICA, INC.
