Master Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.
Remove the collector cover.
Drain clutch fluid from reservoir tank completely.
Remove the instrument panel lower cover. Ref. to REMOVAL , Instrument Panel Lower Cover.
Remove the pedal assembly. Ref. to REMOVAL , Clutch Pedal.
Remove the clip and clevis pin, and then separate the push rod of the master cylinder from clutch pedal.

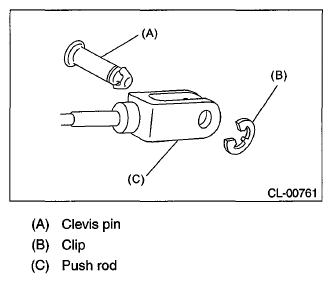

Fig 1: Identifying Clip And Clevis Pin With Push Rod
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the clutch stroke sensor connector.
Remove the clutch pipe from the master cylinder.

Fig 2: Locating Clutch Stroke Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the master cylinder from the pedal bracket.

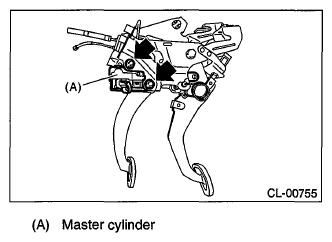

Fig 3: Locating Master Cylinder To Pedal Bracket
Courtesy of SUBARU OF AMERICA, INC.
