Engine Controls - Engine (Diagnostics) (H4SO - 2.5L SOHC): Electrical Component Location: Location: Sensor

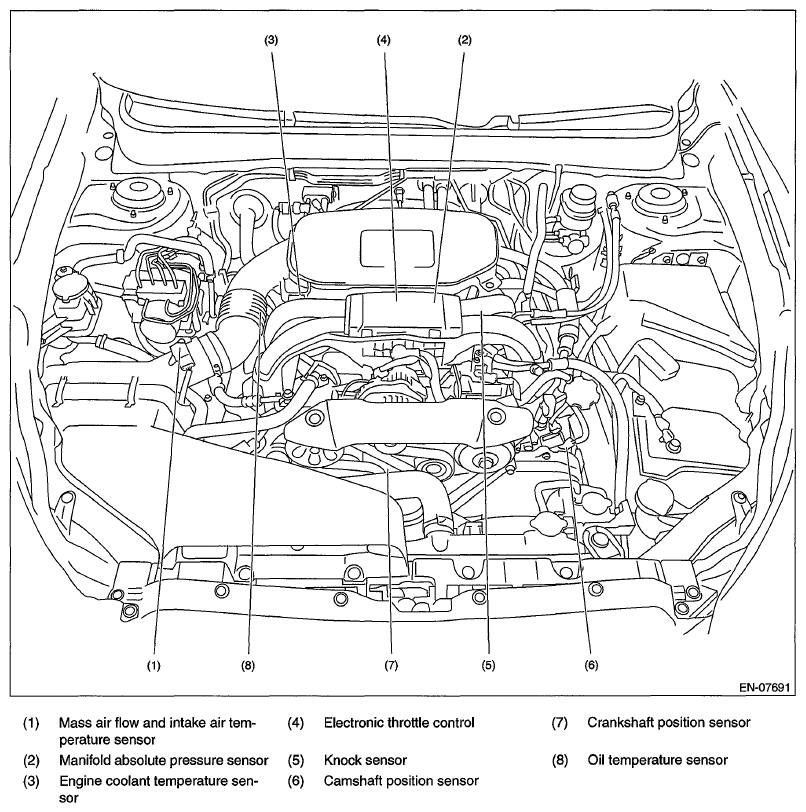

Fig 1: Identifying Sensor Electrical Component Location (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

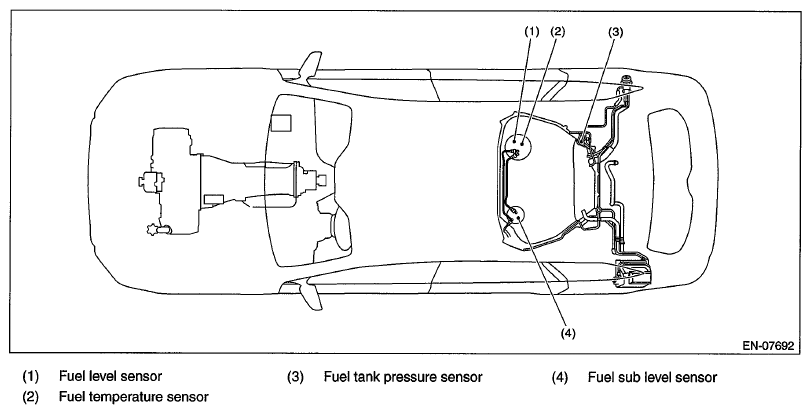

Fig 2: Identifying Sensor Electrical Component Location (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

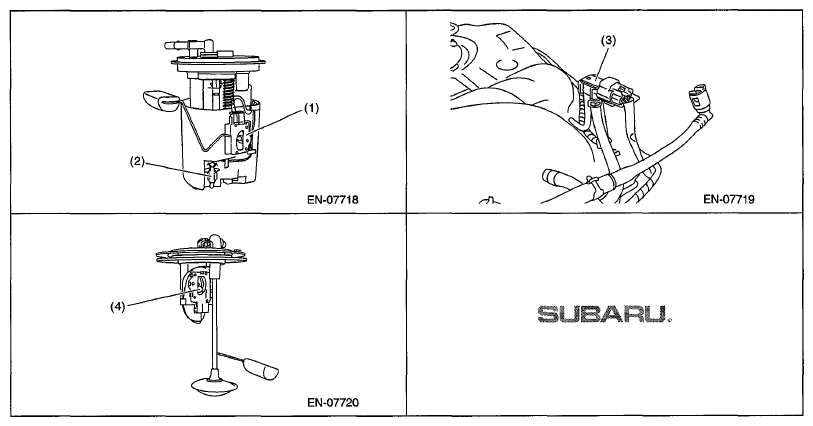

Fig 3: Identifying Sensor Electrical Component Location (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

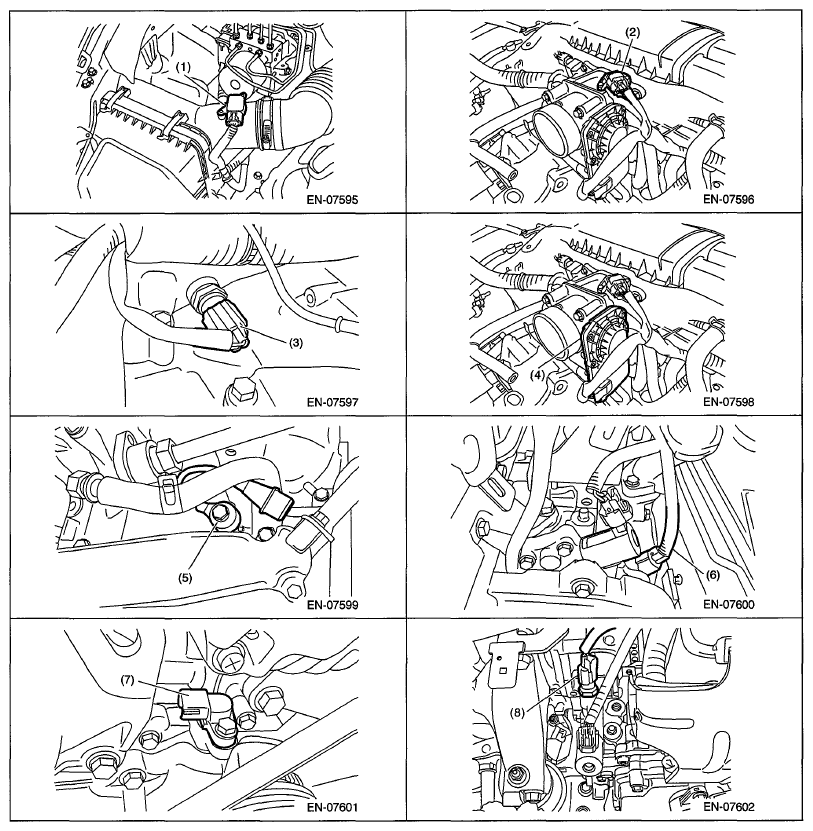

Fig 4: Identifying Sensor Electrical Component Location (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

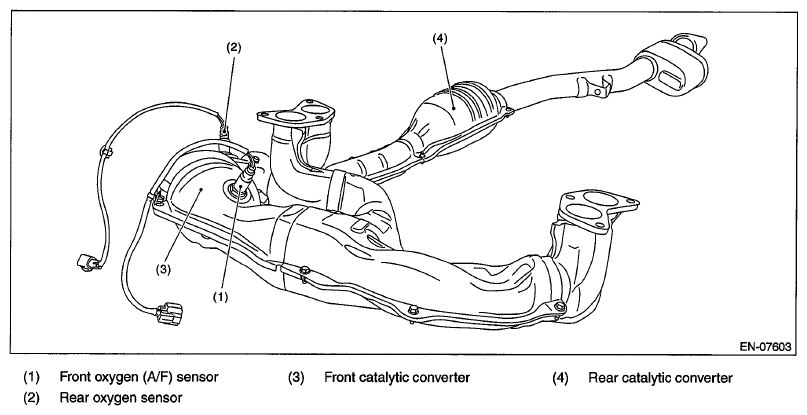

Fig 5: Identifying Sensor Electrical Component Location (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
