Oil Charge Pipe: Removal

  1. Disconnect the ground cable from battery.
  2. Lift up the vehicle.
  3. Remove the under cover. Ref. to REMOVAL , Front Under Cover.
  4. Remove the front exhaust pipe. Ref. to REMOVAL , Front Exhaust Pipe.
  5. Disconnect the connector from turbine speed sensor 1.
  6. Remove the oil charge pipe, and then remove the O-ring from flange side.

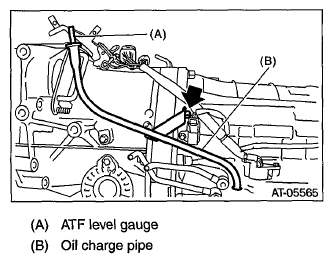

    Fig 1: Identifying Oil Charge Pipe
    G06652036Courtesy of SUBARU OF AMERICA, INC.
