Extension Case Oil Seal: Replacement

  1. Lift up the vehicle.
  2. Clean the transmission exterior.
  3. Remove the ATF drain plug to drain ATF.
    CAUTION: Immediately after the vehicle has been running or the engine has been long idle running, the ATF is hot. Be careful not to burn yourself.
  4. Tighten the ATF drain plug.
    NOTE: Use a new gasket.

    Tightening torque:

    20 N.m (2.0 kgf-m, 14.8 ft-lb)

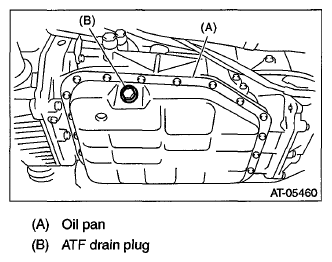

    Fig 1: Identifying ATF Drain Plug
    G06651994Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the rear exhaust pipe. Ref. to REMOVAL , Rear Exhaust Pipe.
  6. Remove the heat shield cover.
    Fig 2: Identifying Heat Shield Cover
    G05019661Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the propeller shaft. Ref. to REMOVAL , Propeller Shaft.
  8. Using the ST, remove the oil seal.

    ST 398527700 PULLER ASSY

  9. Using the ST, install the oil seal.

    ST 498057300 INSTALLER

  10. Install the propeller shaft. Ref. to INSTALLATION , Propeller Shaft.
  11. Install the heat shield cover. Ref. to INSTALLATION , Heat Shield Cover.
  12. Install the rear exhaust pipe. Ref. to INSTALLATION , Rear Exhaust Pipe.
  13. Lower the vehicle.
  14. Pour ATF from the oil charge pipe. Ref. to AUTOMATIC TRANSMISSION FLUID .
  15. Check the level and leaks of the ATF. Ref. to INSPECTION , Automatic Transmission Fluid.
