Steering Gearbox

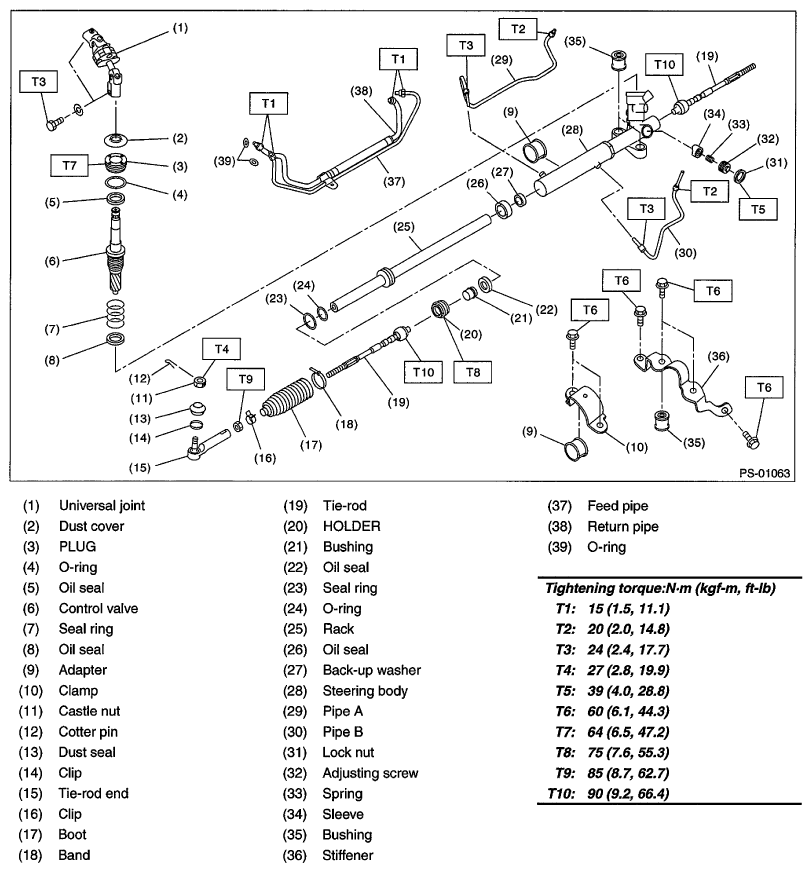

Fig 1: Steering Gearbox Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 20 (2.0, 14.8)

T3: 24 (2.4, 17.7)

T4: 27 (2.8, 19.9)

T5: 39 (4.0, 28.8)

T6: 60 (6.1, 44.3)

T7: 64 (6.5, 47.2)

T8: 75 (7.6, 55.3)

T9: 85 (8.7,62.7)

T10: 90 (9.2, 66.4)
