Universal Joint: Removal

  1. Adjust the tilt position of the steering column to the lowest position and lock the tilt lever.
  2. Prevent the steering wheel from turning using the seat belt.

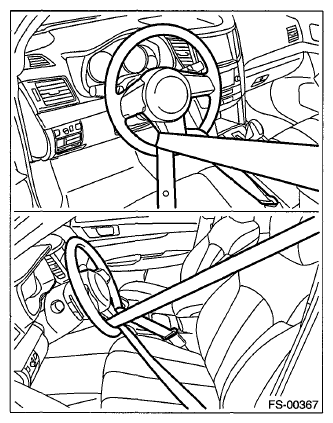

    Fig 1: Securing Steering Wheel Using Seat Belt
    G06654875Courtesy of SUBARU OF AMERICA, INC.
  3. Place alignment marks on universal joint.
  4. Remove the universal joint bolt and remove the universal joint.
    Fig 2: Locating Universal Joint Bolt
    G06652807Courtesy of SUBARU OF AMERICA, INC.
