Section 13 (Continuously Variable Transmission - Diagnostics): Electrical Component Location: Location: Sensor

WARNING: This page is about a different variant/trim than selected.

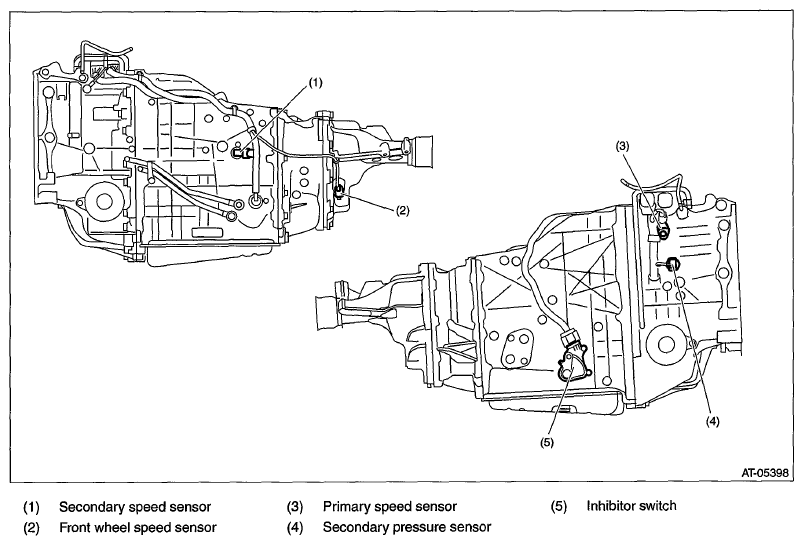

Fig 1: Identifying Secondary Speed Sensor, Primary Speed Sensor, Inhibitor Switch, Front Wheel Speed Sensor And Secondary Pressure Sensor

Courtesy of SUBARU OF AMERICA, INC.
