Roof Trim: Installation

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Attach the feeder cord and roof cord to the roof trim.
CAUTION: Route each cord carefully. The cord may interfere, thus preventing normal deployment of the curtain airbag when necessary.

Tape:

Item number: 86359SC000/TAPE

NOTE: Use the tape (service parts) by cutting into 80 mm x 50 mm (3.2 in x 2.0 in).
- Sedan model

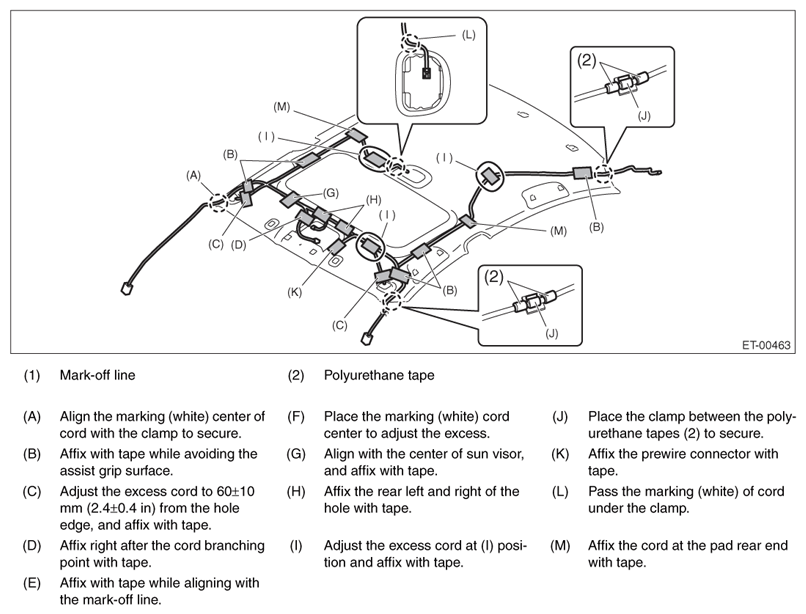

  Fig 1: Identifying Feeder Cord And Roof Cord Connection Points - Sedan Model (1 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.

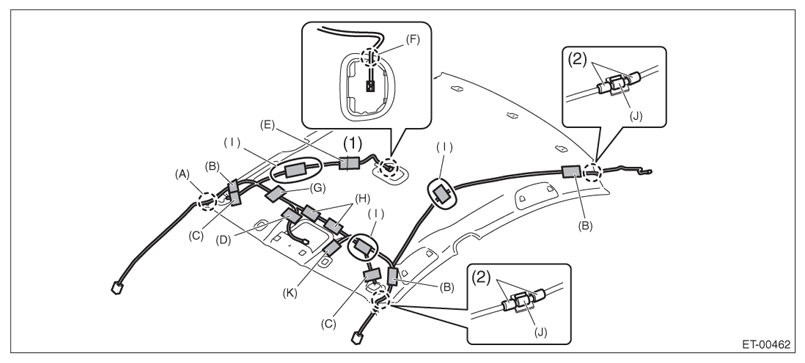

  Fig 2: Identifying Feeder Cord And Roof Cord Connection Points - Sedan Model (2 Of 2)
  Courtesy of SUBARU OF AMERICA, INC.
- OUTBACK model

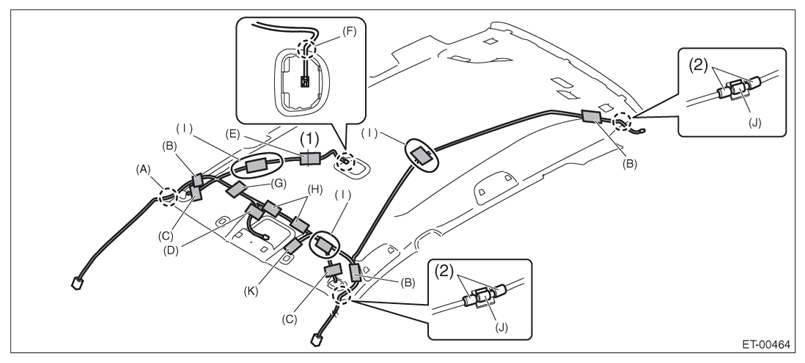

Fig 3: Identifying Feeder Cord And Roof Cord Connection Points - Outback Model (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

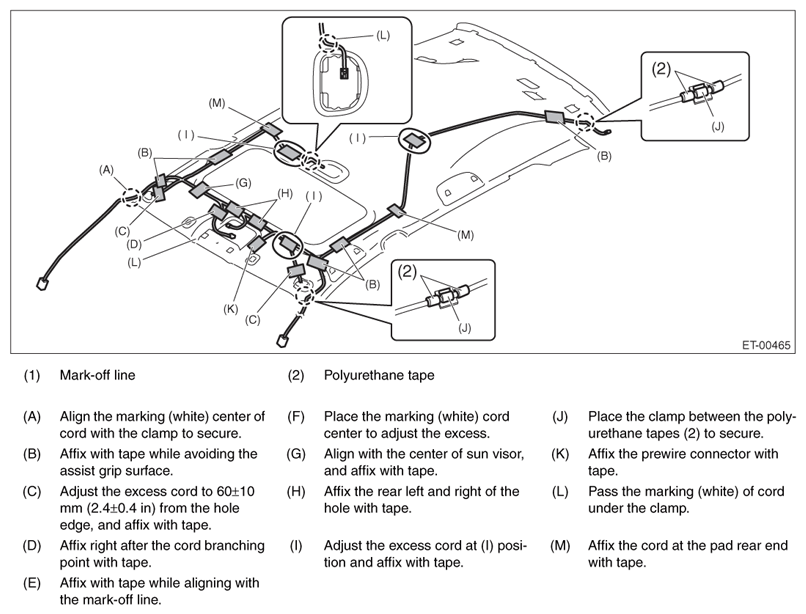

Fig 4: Identifying Feeder Cord And Roof Cord Connection Points - Outback Model (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Install each part in the reverse order of removal.

CAUTION: If the hook is disconnected from the vehicle body, replace the hook with the new part to prevent the decline of the fixed force of the seat.

Fig 5: Identifying Seat Cushion Hook

Courtesy of SUBARU OF AMERICA, INC.
