Luggage Room Light: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the luggage room light.
    1. Release the claws and remove the luggage room light main body.
    2. Disconnect the connector and remove the luggage room light.
      Fig 1: Disconnecting Luggage Room Light Connector
      G06653390Courtesy of SUBARU OF AMERICA, INC.
  3. Release the claws, and detach the luggage room light cover and bulb.

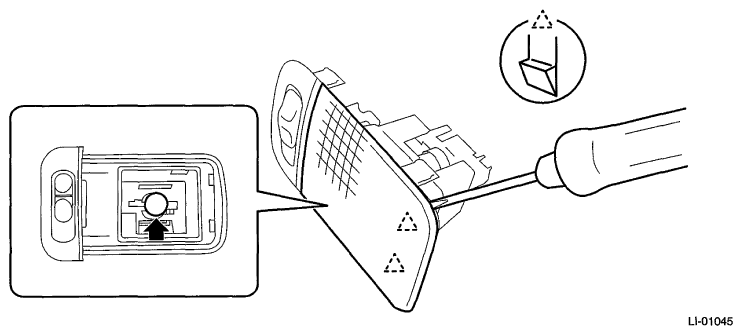

    Fig 2: Detaching Luggage Room Light Cover And Bulb
    G06653497Courtesy of SUBARU OF AMERICA, INC.
