Glove Box Light: Removal

WARNING: This page is about a different car, the 2012 Subaru Outback and 2012 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to GLOVE BOX .
  3. Remove the glove box light from the glove box back panel.

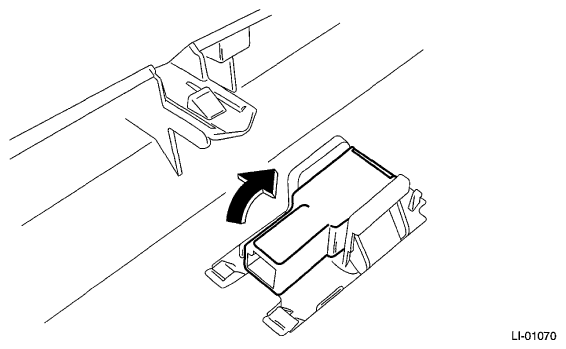

    Fig 1: Removing Glove Box Light From Glove Box Back Panel
    G06653501Courtesy of SUBARU OF AMERICA, INC.
