Front Hood Lock And Remote Openers

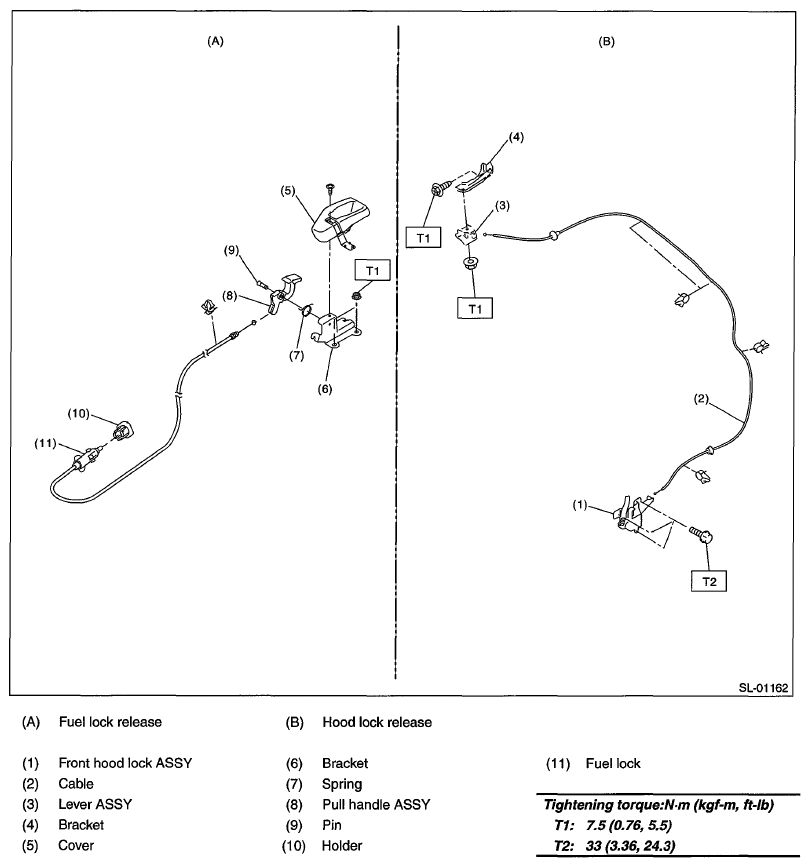

Fig 1: Front Hood Lock And Remote Openers Replacement Components With Torque Specifications
G06653876Courtesy of SUBARU OF AMERICA, INC.
