Air Intake System

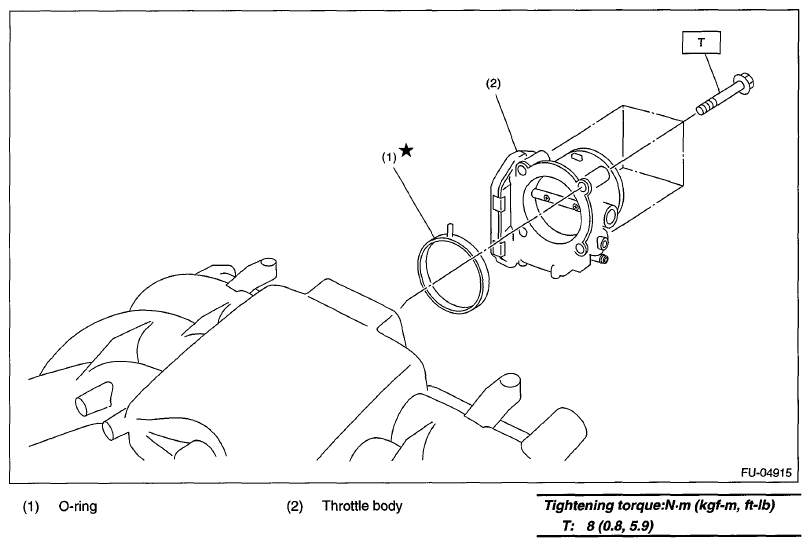

Fig 1: Air Intake System O-Ring And Throttle Body With Torque Specifications

G06651172

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8,5.9)
